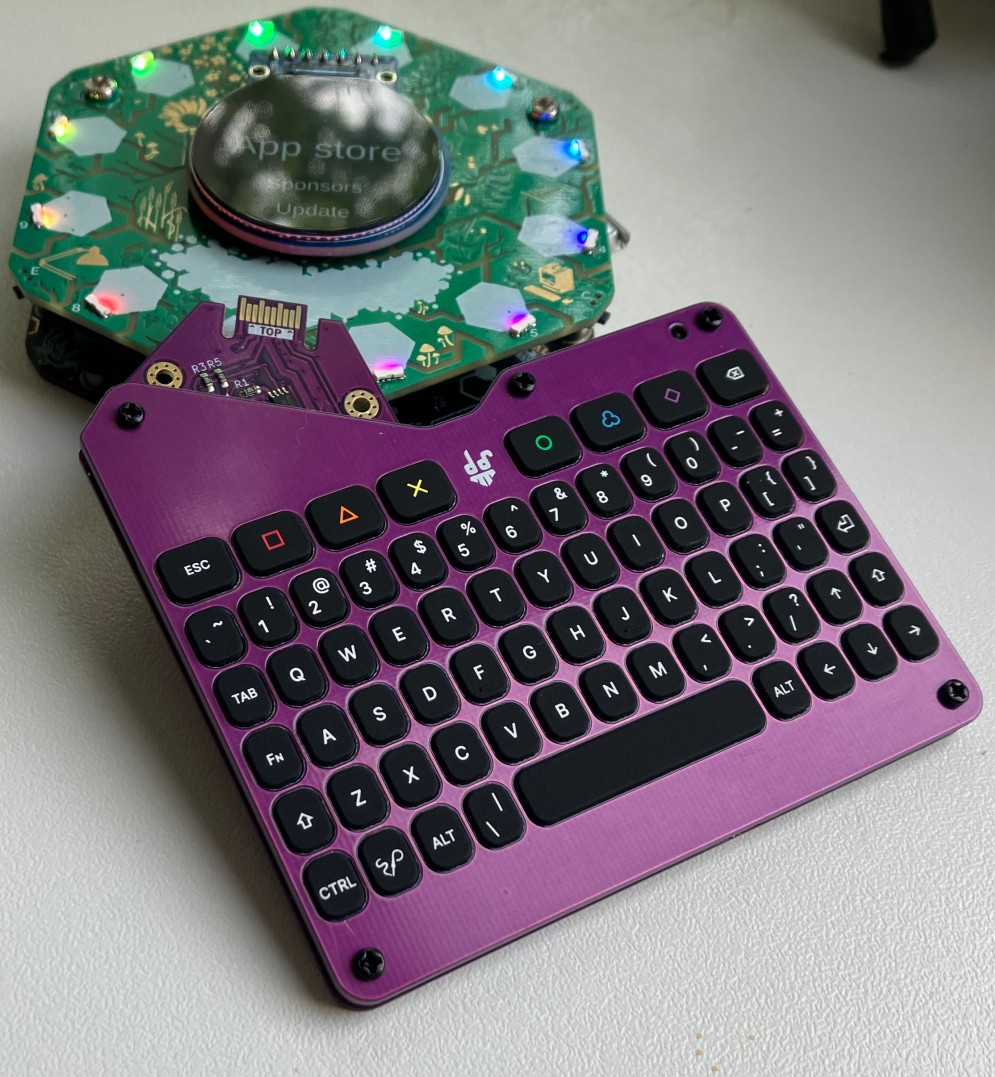

Keepdexpansion
The keebdexpansion our first official hexpansion - a keyboard, so you can tap out messages and be less frustrated when entering wifi passwords.
Available for EMF 2026 camp ticket holders on the emfcamp website. See the blog post introducing the Spaceagon for more info.
Hardware was originally started by @davedarko. Later @kliment changed the leds to RGB leds, altered the shape and added designs by Morag.
The driver software for the hexpansion is provided by @sodoku.
Features
- Full layout keyboard
- RGB Backlit keys
- Type in text inputs
- Auto-installs driver when plugged in
Key combinations
| Keys | Description |
|---|---|
| FN + ESC | Turn leds off |
| FN + SQUARE | Set all leds to red |
| FN + TRIANGLE | Set all leds to orange |
| FN + CROSS | Set all leds to yellow |
| FN + CIRCLE | Set all leds to green |
| FN + CLOUD | Set all leds to blue |
| FN + DIAMOND | Set all leds to purple |
| FN + SOLDERPARTY | Make leds follow tildagon pattern |
Note: SOLDERPARTY is the key next to CTRL
